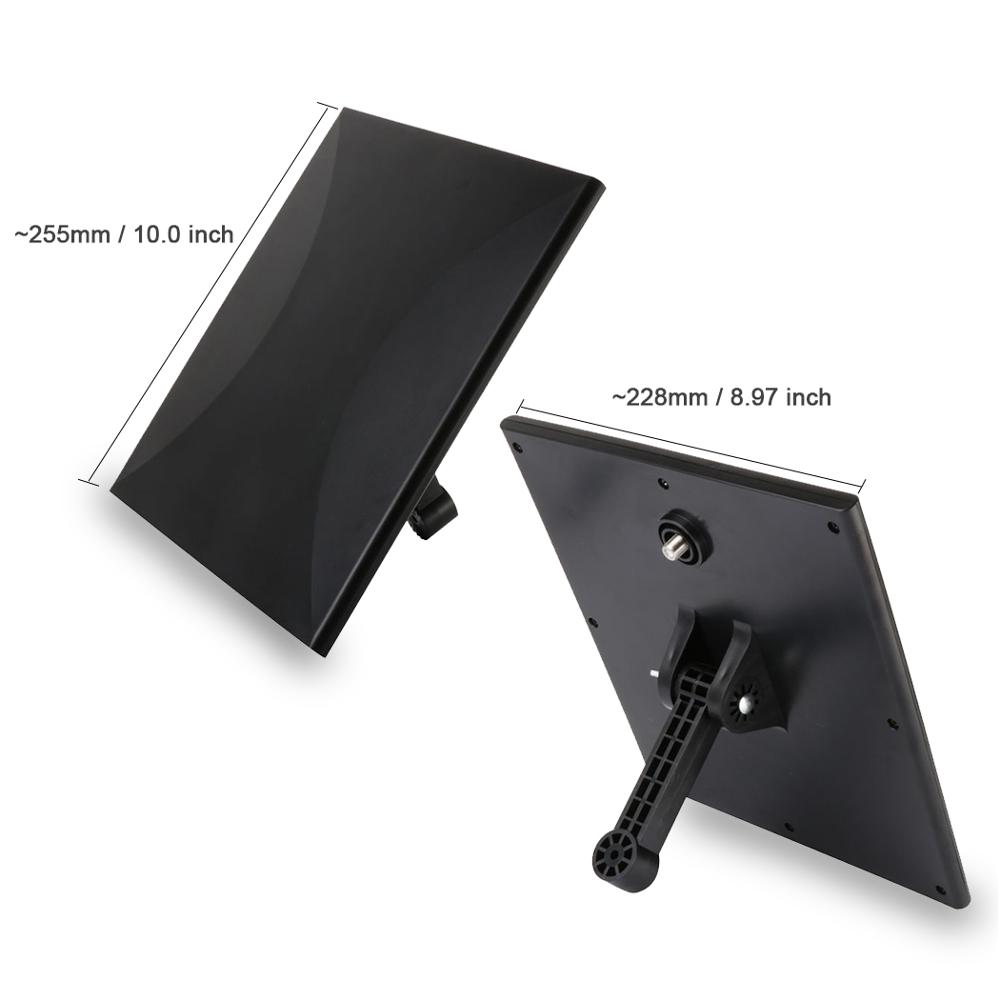

Indoor&Outdoor 30dbi Panel HDTV antenna
| Model NO | RSP-174-862-30 |
| Electric Spec | |
| Frequency rang-MHz | 174～862 |
| Bandwidth -MHz | 200 |
| Gain -dBi | 30 |
| Channel | Ch 1-69 |
| beam width -° | H：48 V：42 |
| F/B Ratio -dB | ≥16 |
| VSWR | ≤1.5 |
| Input Impedance-Ω | 75 |
| Polarization | Horizontal or Vertical |
| Max power -W | 100 |
| Lightning protection | DC ground |
| Connector model | F female or others |
| Mechanical Specification | |
| Working Temperature -°c | -40～60 |
| Pole diameter -mm | Φ40～Φ50 |
