37dbm high power single band digital mobile signal booster_Mobile signal booster_PRODUCTS

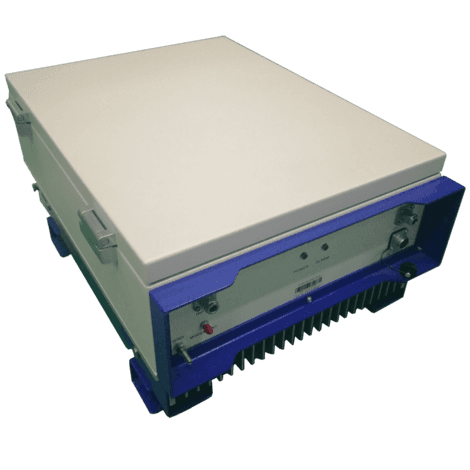

37dbm high power single band digital mobile signal booster

Models	Uplink	Downlink
RS20F-B3	1920 ~ 1980 MHz	2110 ~ 2170MHz

Items	Uplink	Downlink
Operating Bandwidth	0.2~10 MHz(Frequency can be set , 200 kHz step)
Sub-bands	1~3
Output power	27±2 dBm	37±2 dBm
Gain	80±2 dB	85±2 dB
Ripple in Band	≤4 dB	≤4 dB
VSWR	≤2	≤2
Noise Figure	≤6 dB	≤6 dB
Time Delay	≤13 μs	≤13 μs
Power Supply	DC：12 V /3 A
RF Connector	N-Female
Environment Condition	IP40
Humidity	< 90%
Operating Temperature	-10℃ ~ +55℃
Dimension	520400210mm
Weight	<20kg

Features

● Alarm LED indication.
● AGC function special for electric fans.
● Can be controlled and monitored,
● High-quality shell, good heating dissipation.

Application

● Indoor & outdoor DAS/MDAS
● Signal coverage of villa basement
● Signal coverage of office, elevator
