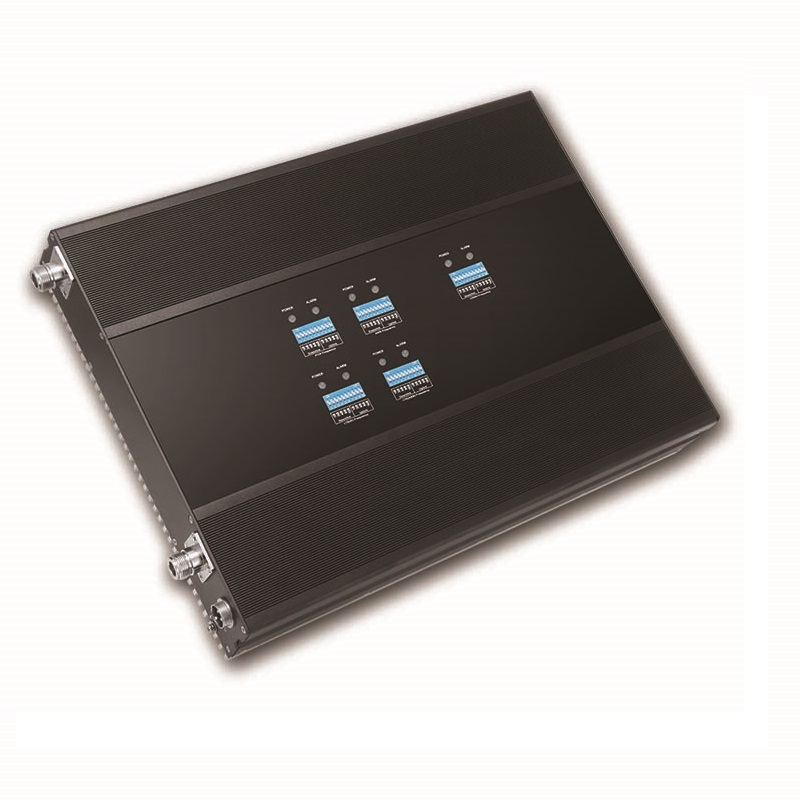

23dbm Five band mobile signal booster
| Specification | |||
| Parameter data | Uplink | Downlink | |
| Frequency |
698 ~ 716 MHz | 728 ~ 746 MHz | |
| 824 ~ 849 MHz | 869 ~ 894 MHz | ||
| 776 ~ 787 MHz | 746 ~ 757 MHz | ||
| 1920 ~ 1980 MHz | 2110 ~ 2170 MHz | ||
| 1850 ~ 1910 MHz | 1930 ~ 1990 MHz | ||
| Output Power | 17±2 dBm | 23±2 dBm | |
| Gain | 65±2 dB | 70±2 dB | |
| Ripple in band | ≤6~15 dB | ||
| Function | Auto Gain Control/Auto Shut Off/MGC | ||
| Noise Figure@ max. gain | ≤6 dB | ||
| Spurious emission | 9KHz~1GHz | ≤-36 dBm | ≤-36 dBm |
| 1GHz~12.75GHz | ≤-30 dBm | ≤-30 dBm | |
| MTBF | >100,000 hours | ||
| Mechanical Specification | |||
| RF Connector | N-Female | ||
| Size | 370*270*54mm | ||
| Weight | <2.5kg | ||
| Operating Temperature | -10℃ ~ +55℃ | ||
