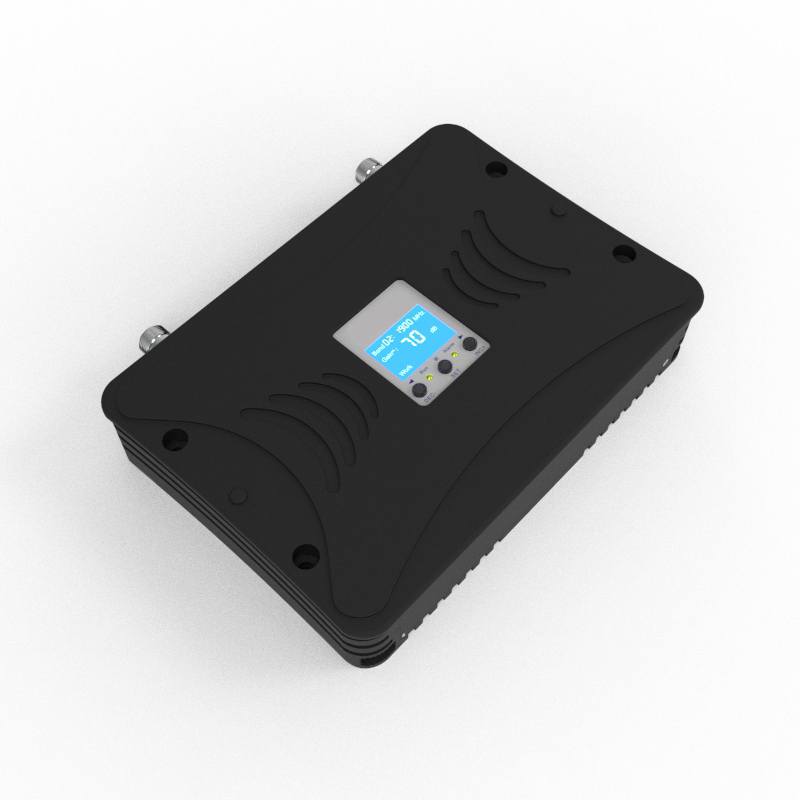

20dbm Five band mobile signal booster
| Specification | |||
| Parameter data | Uplink | Downlink | |
| Frequency |
832 ~ 862 MHz | 791 ~ 821 MHz | |
| 880 ~ 915 MHz | 925 ~ 960 MHz | ||
| 1710 ~ 1785 MHz | 1805 ~ 1880 MHz | ||
| 1920 ~ 1980 MHz | 2110 ~ 2170 MHz | ||
| 2500 ~ 2570 MHz | 2620 ~ 2690 MHz | ||
| Output Power | 15±2 dBm | 20±2 dBm | |
| Gain | 65±2 dB | 70±2 dB | |
| Ripple in band | ≤6~15 dB | ||
| Function | Auto Gain Control/Auto Shut Off/MGC | ||
| Noise Figure@ max. gain | ≤6 dB | ||
| Spurious emission | 9KHz~1GHz | ≤-36 dBm | ≤-36 dBm |
| 1GHz~12.75GHz | ≤-30 dBm | ≤-30 dBm | |
| MTBF | >100,000 hours | ||
| Mechanical Specification | |||
| RF Connector | N-Female | ||
| Size | 178*253*59mm | ||
| Weight | <2.5kg | ||
| Operating Temperature | -10℃ ~ +55℃ | ||
